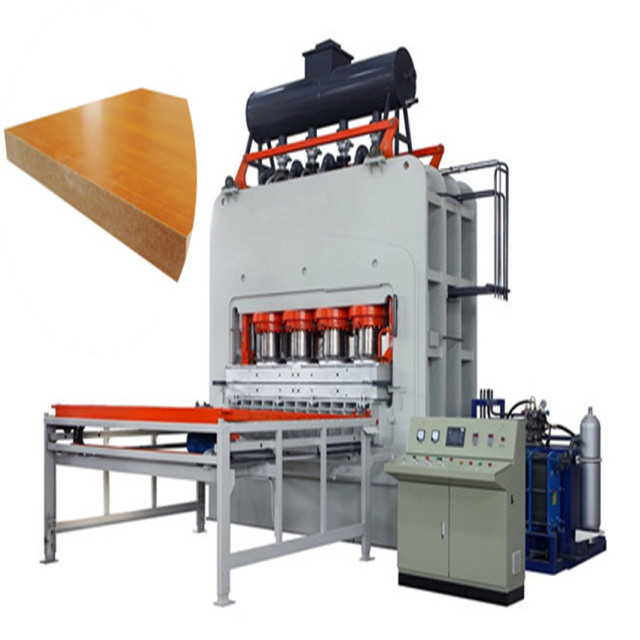

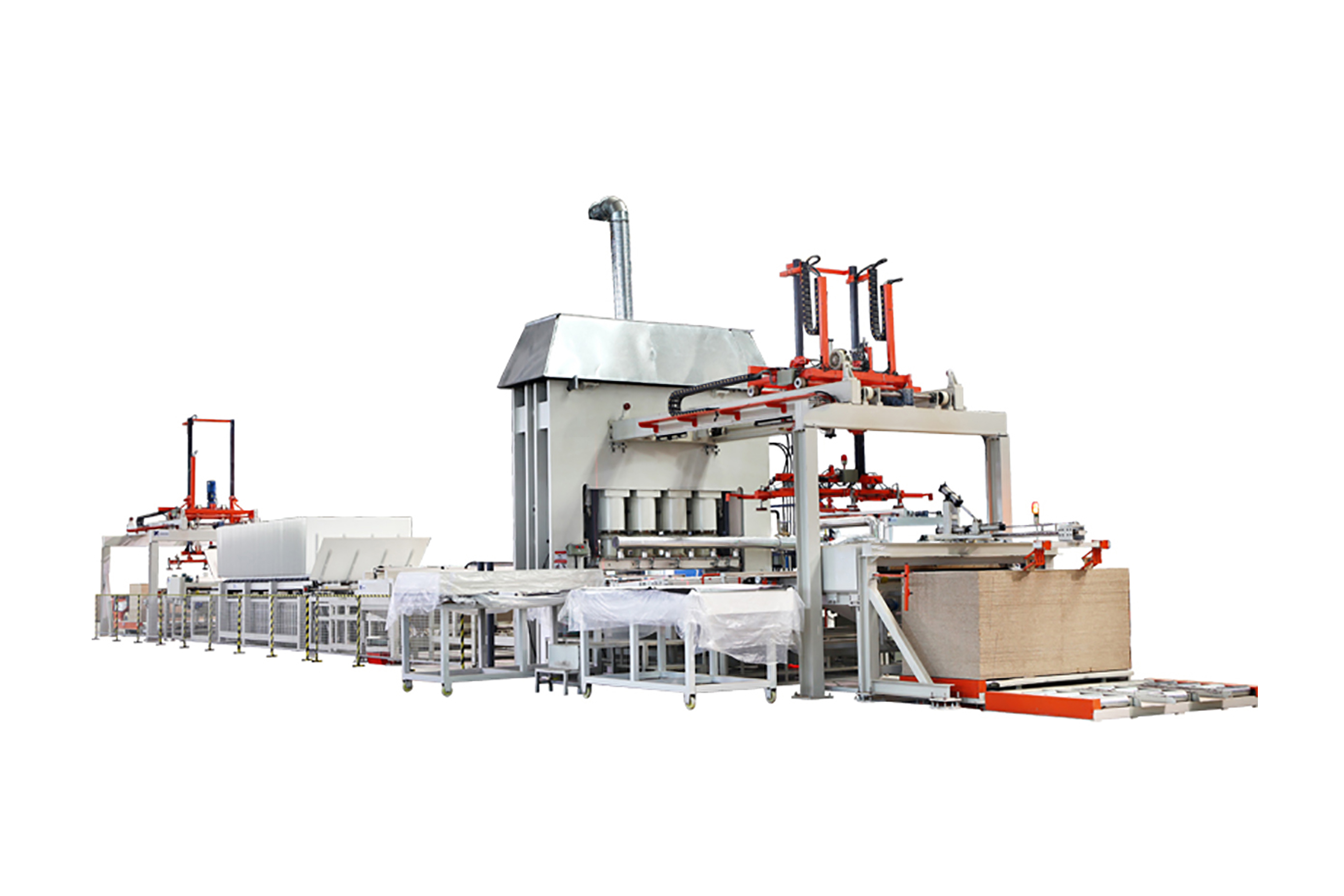

NTRY Short Cycle Press Melamine Laminating Production Line Machine
No.WK-20250912-01

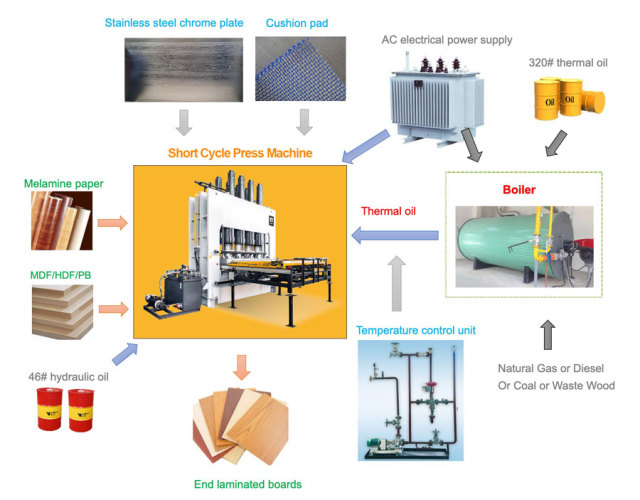

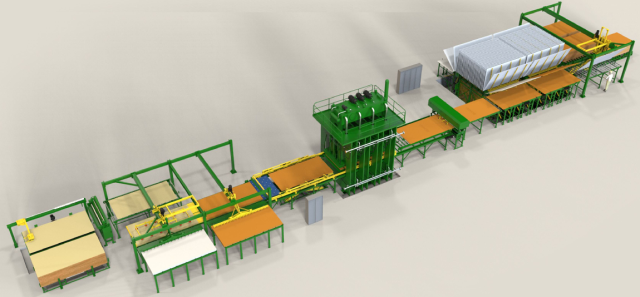

Short Cycle Press Line is an advanced industrial manufacturing system primarily used in the production of laminated panels, such as melamine-faced particleboards, MDF (medium-density fiberboard), or high-pressure laminates (HPL). It is widely employed in the furniture, flooring, and interior design industries for producing high-quality, decorative, and durable wood-based panels.

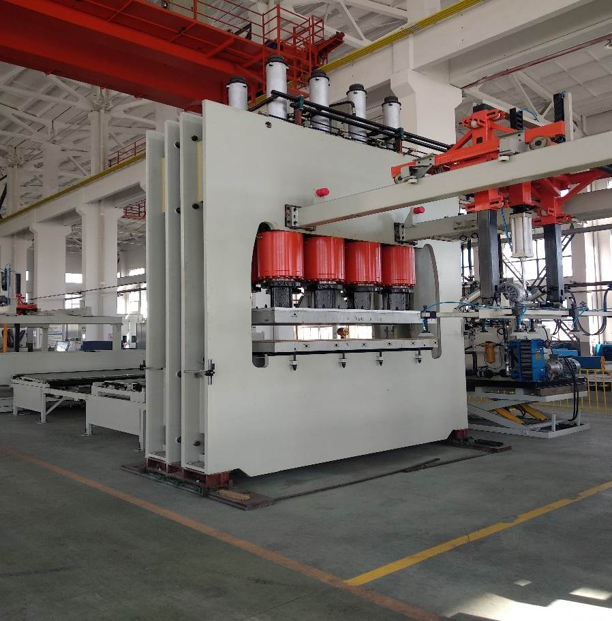

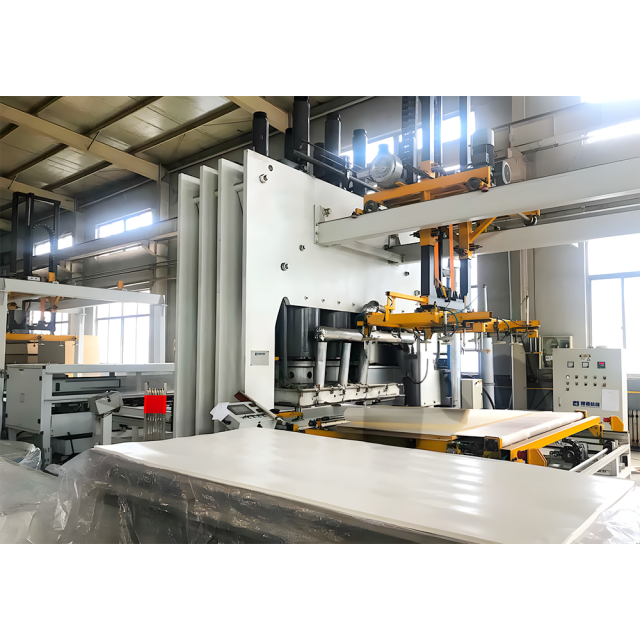

1.Main Hot Press 1.1 Include: Frame, Oil Cylinder, Hot Press Hot Platen, Hydraulic system, electrical system, temp-control system 1.2 Advantage: Pressure is adjustable, Cylinders can be grouped at different pressure The precision of finished product can be controlled to ±0.1mm Long working life of Seal kits in Main Cylinder, can be replaced within 2 years

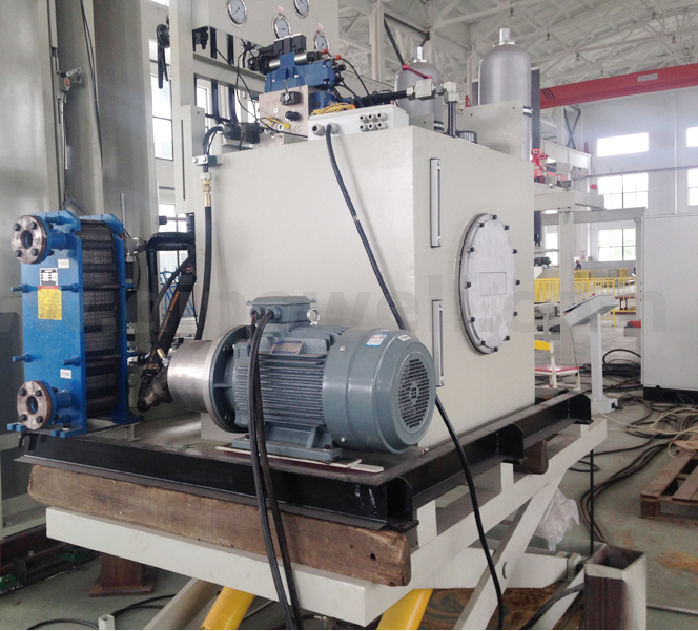

2.Hydraulic System 2.1 Experts at Hydraulic system in China, to make sure its performance 2.2 Adopt the world famous accessories and components, to make sure long-term/stable working（ATOS、 Rexroth 、HYDAC） 2.3 Adopt Air Cooler（water-cooler will cause pipe leakage after long time, and water mixed into hydraulic oil, all hydraulic oil will need to replaced.

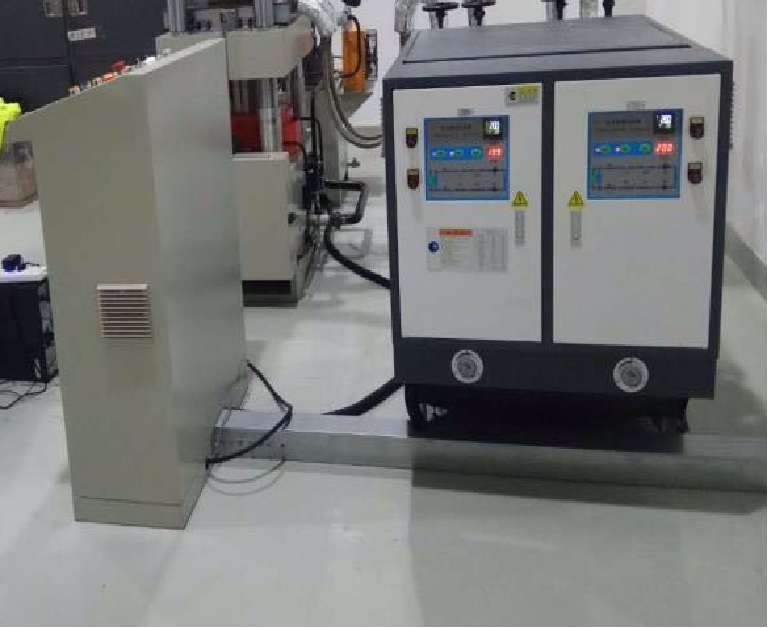

3. Electrical System 3.1 Include： Control box、console table、operation box、display screen、electric cables、 junction box 、crane structure etc. 220~230KW Mold temperature machine, upper and down Hot Platen can be controlled separately. 3.2 HMI touch screen： Pressure/temperature/time as well as other technology data can be set and recorded as formulation Running of whole system is controlled by PLC

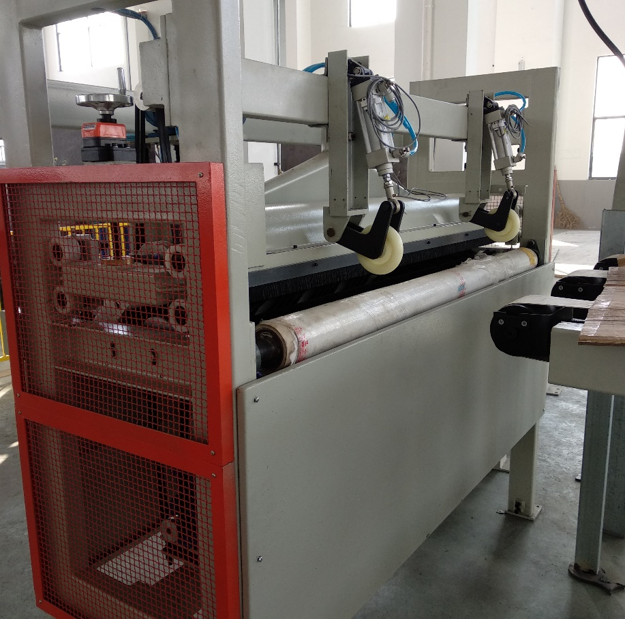

4.Brusher 4.1 Working principle： A rotating brusher to remove the dust and dirt on board surface 4.2 Include： Frame、Brusher、Extrusion wheel、Lifting Device、Safety cover、Motor etc.
